Suspension installation Built-in installation Direct light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class I Flammable surfaces suitable for installation
Chromatic rendered index ≥80 Chromatic rendered index ≥90 Degree of protection IP20
Mountings:
• Suspended fitting
• Surface mounted fitting

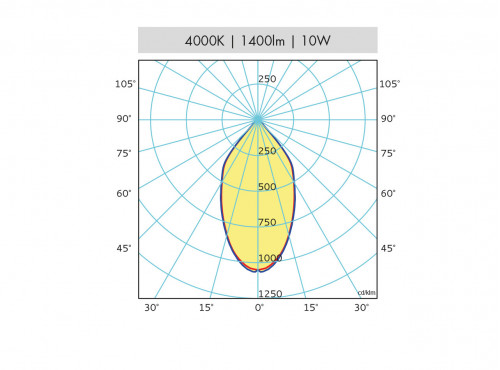

Light emission:
Direct
Symmetric
Body:
Aluminum body
Reflector (Cut-off) in steel sheet, painted white
Optical device:
Specular anodised aluminum reflector
Light source:
LED CRI ≥ 80 Ra
• 3000K
• 4000K
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Prestazioni:
• Protection level IP20
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-2
EN 62031
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST:
• Dimmable electronic ballast PUSH
• Dimmable electronic ballast 1-10V
• DALI dimmable electronic ballast
• Ra 90

Download

ds_9780_ICHOS

Data Sheet: ICHOS - 9780

Download (5.36MB)
