Suspension installation Ceiling installation Direct light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Classe isolamento I Flammable surfaces suitable for installation
Chromatic rendered index ≥80 Color tolerance - 3 Lifetime: 50000 cc Photobiological risk Degree of protection IP40 Impact resistance Test of the enclosed wire
Mountings:
• Surface mounted fitting
• Suspended fitting
Light emission:
Direct
Symmetric

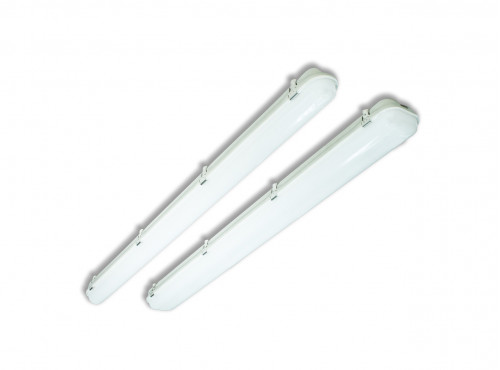

Body:
Made of shockproof, V2 self-extinguishing, injection-moulded polycarbonate
Optical device:
Diffuser in V2 self-extinguishing, UV stabilized, injection-moulded polycarbonate
Light source:
• LED CRI ≥80 Ra
• 4000K
• Lifetime (Ta=25°C): 50000h L80B10
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Driver operating temperature: from -15°C to +50°C
Performance data:
• Protection level IP65
• Flame resistance, test glow-wire 850°C
• Impact energy IK 08
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• Dimmable electronic ballast PUSH
• Dimmable electronic ballast 1-10V
• Dimmable electronic ballast DALI

Download

ds_6120_AZ61

Data Sheet: AZ61 IP65 - 6120

Download (938.48KB)

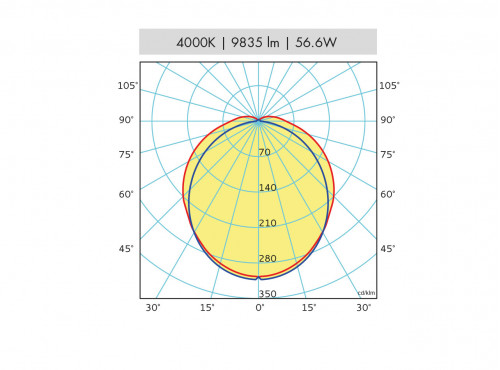

Eulumdat: 6120

Download (42.26KB)
