Mountings:

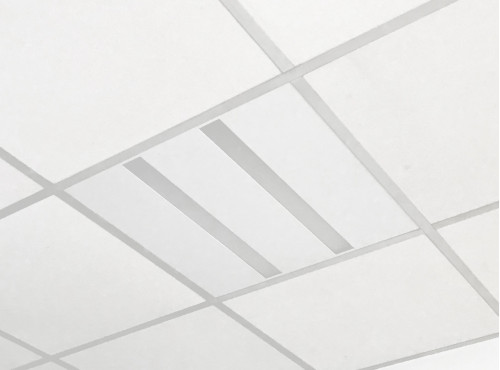

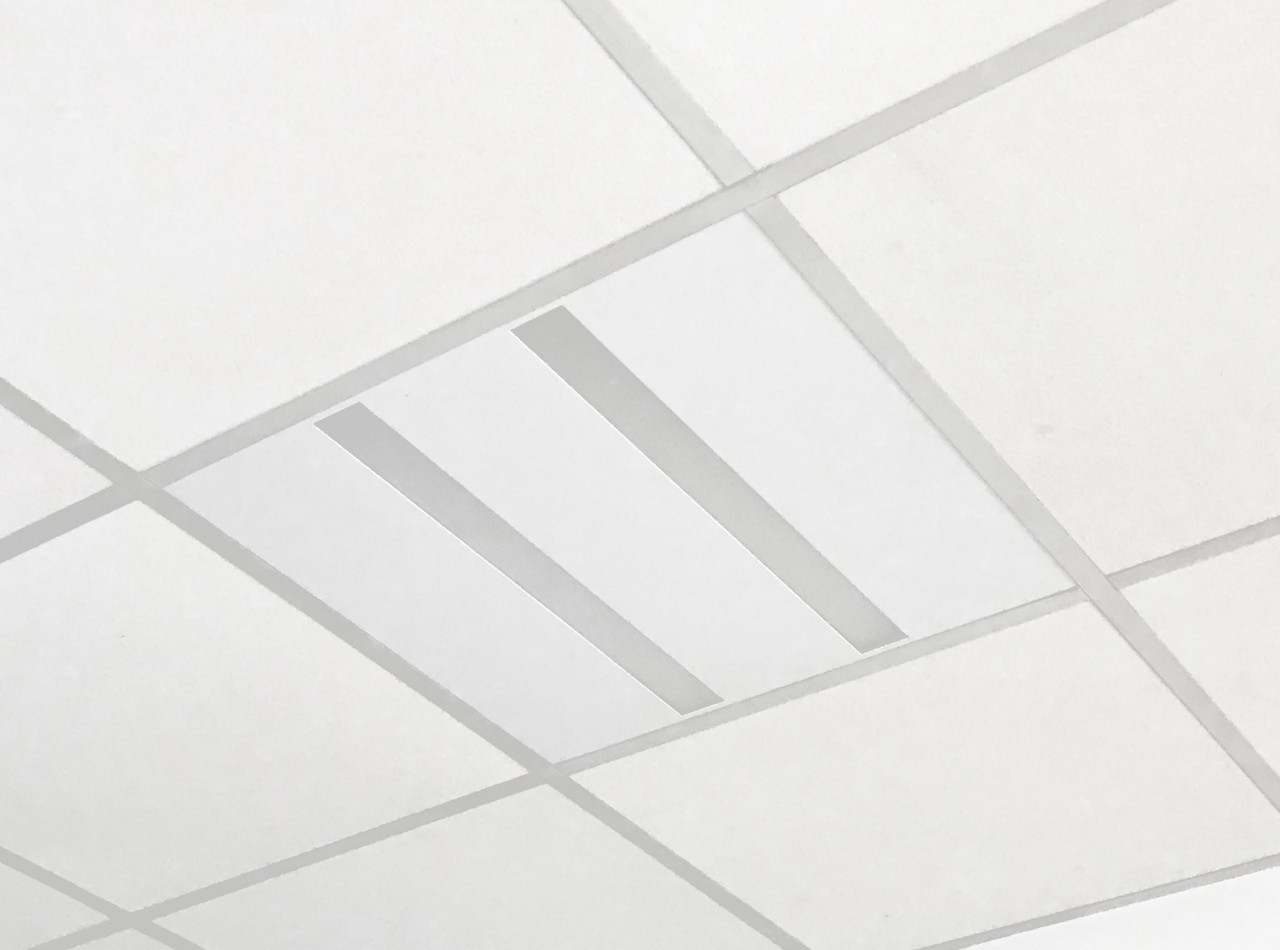

Built-in fitting, lay-in 600x600 mm wide exposed bearing structure

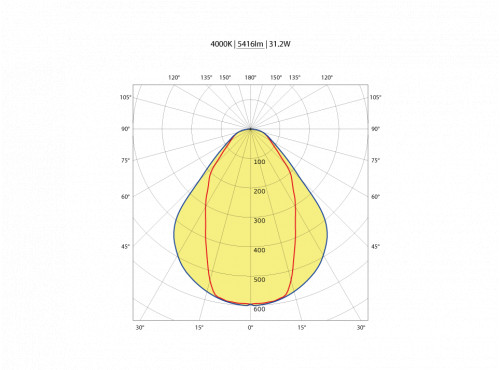

Light emission:
Direct
Symmetric
Body:
In sheet steel, painted with SOLVENT FREE, semi-bright white epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Optical device:
Diffuser in microprismatic polycarbonate.
Light source:
LED CRI ≥ 80 Ra
• 3000K
• 4000K
• Color tolerance 3 MacAdam (3 SDCM)
• Lifetime (Ta=25°C) 75000h L80B10
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
• Technical side protection level IP20
• User side protection level IP40
• UGR ≤19
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-2
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS ON REQUEST (if possible)
• Dimmable electronic ballast
• DALI dimmable electronic ballast
• Emergency unit 1h
• Ra 90
