Built-in installation Direct light emission Compliant with the directive for electromagnetic compatibility 89/336 / EEC; 73/23 / EEC Insulation class: I Flammable surfaces suitable for installation
Chromatic rendered index≥80 Chromatic rendered index≥90 Color tolerance - 3 Lifetime: 50000 hours Photobiological risk: 0 Glare index Degree of protection: IP20/IP40
Mountings:
Ceiling installation
Light emission:
Direct
Symmetric
Body:
In sheet steel, painted with SOLVENT FREE, semi-bright white epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Optical device:
Diffuser in microprismatic polycarbonate
Light source:
• LED CRI ≥ 90 Ra
• 3000K
• 4000K
• Color tolerance 3 MacAdam (3 SDCM)
• Lifetime (Ta=25°C) 50000h L80B10
• UGR ≤19
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
• Technical side protection level IP20
• User side protection level IP40
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Directives:
2014/35/UE
2014/30/UE
VERSIONS ON REQUEST (if possible)
• Dimmable electronic ballast 1-10V
• DALI dimmable electronic ballast
• Emergency unit 1h

Download

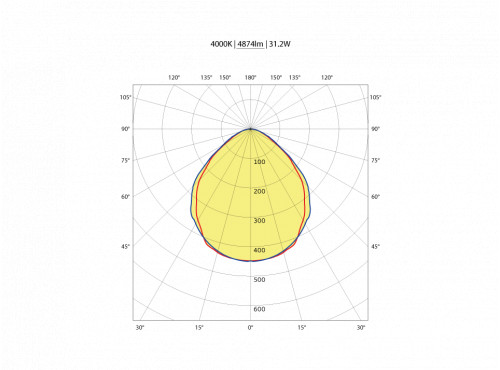

Eulumdat: 2080 MP

Eulumdat: 2080 MP

Download (44.55KB)

ds_2080

Data Sheet: 295-595 - 2080

Download (698.66KB)
