| Dimension | Optics | CRI | K | Watt | Lumen In | Lumen Out | Color | Cod. EL | Cod. DALI |
|---|---|---|---|---|---|---|---|---|---|
| 600 | OP | 80 | 3000 | 30 | 4226 | 2239 | B | 97353WW0600E0B | 97353WW0600DDB |
| 600 | OP | 80 | 4000 | 30 | 4457 | 2361 | B | 97353NW0600E0B | 97353NW0600DDB |
| 900 | OP | 80 | 3000 | 49 | 6869 | 3638 | B | 97353WW0900E0B | 97353WW0900DDB |
| 900 | OP | 80 | 4000 | 49 | 7245 | 3837 | B | 97353NW0900E0B | 97353NW0900DDB |
| 1200 | OP | 80 | 3000 | 65 | 9190 | 4868 | B | 97353WW1200E0B | 97353WW1200DDB |
| 1200 | OP | 80 | 4000 | 65 | 9693 | 5134 | B | 97353NW1200E0B | 97353NW1200DDB |
| 1500 | OP | 80 | 3000 | 82 | 11512 | 6098 | B | 97353WW1500E0B | 97353WW1500DDB |
| 1500 | OP | 80 | 4000 | 82 | 12142 | 6431 | B | 97353NW1500E0B | 97353NW1500DDB |
| 1800 | OP | 80 | 3000 | 102 | 14476 | 7668 | B | 97353WW1800E0B | 97353WW1800DDB |
| 1800 | OP | 80 | 4000 | 102 | 15268 | 8087 | B | 97353NW1800E0B | 97353NW1800DDB |
| 600 | OP | 80 | 3000 | 30 | 4226 | 2239 | N | 97353WW0600E0N | 97353WW0600DDN |
| 600 | OP | 80 | 4000 | 30 | 4457 | 2361 | N | 97353NW0600E0N | 97353NW0600DDN |
| 900 | OP | 80 | 3000 | 49 | 6869 | 3638 | N | 97353WW0900E0N | 97353WW0900DDN |
| 900 | OP | 80 | 4000 | 49 | 7245 | 3837 | N | 97353NW0900E0N | 97353NW0900DDN |
| 1200 | OP | 80 | 3000 | 65 | 9190 | 4868 | N | 97353WW1200E0N | 97353WW1200DDN |
| 1200 | OP | 80 | 4000 | 65 | 9693 | 5134 | N | 97353NW1200E0N | 97353NW1200DDN |
| 1500 | OP | 80 | 3000 | 82 | 11512 | 6098 | N | 97353WW1500E0N | 97353WW1500DDN |
| 1500 | OP | 80 | 4000 | 82 | 12142 | 6431 | N | 97353NW1500E0N | 97353NW1500DDN |
| 1800 | OP | 80 | 3000 | 102 | 14476 | 7668 | N | 97353WW1800E0N | 97353WW1800DDN |
| 1800 | OP | 80 | 4000 | 102 | 15268 | 8087 | N | 97353NW1800E0N | 97353NW1800DDN |

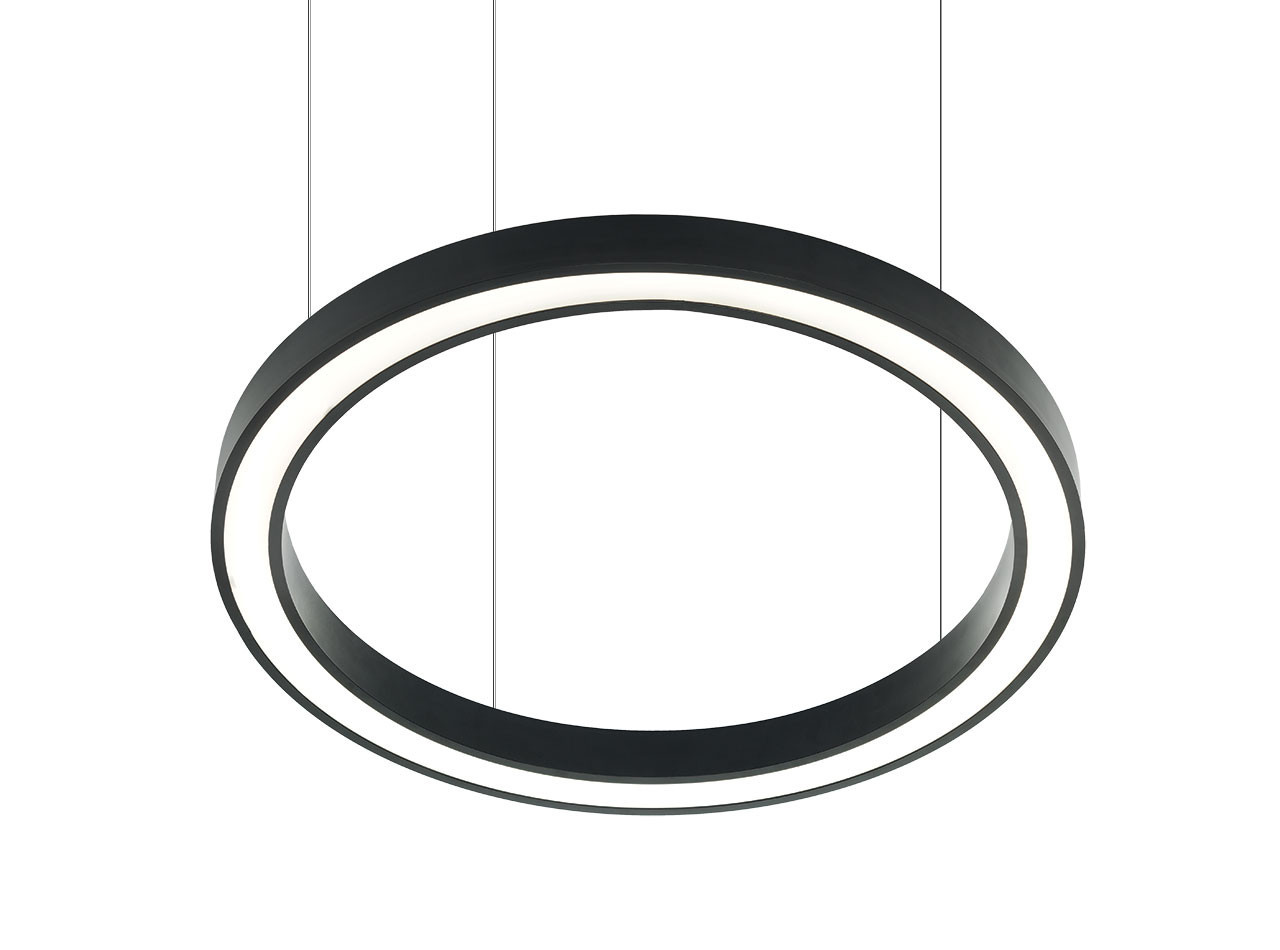

Mountings:
Suspended fitting
Body:
In extruded aluminium, painted with SOLVENT-FREE, white, black, grey or other colours upon request, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment

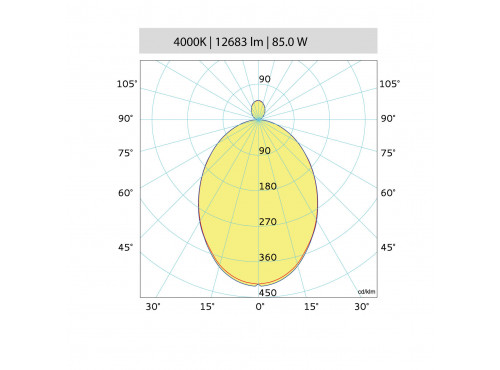

Light emission:
Direct/Indirect
Symmetric
Optical device:
Opal methacrylate (PMMA) diffuser
Light source:
LED CRI ≥80 Ra
• 3000K
• 4000K
• Color tolerance 3 MacAdam (3 SDCM)
Wiring:
Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
• Protection level IP20
• Lifetime (Ta=25°C) 50000h L80B20
Marks:
CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• Dimmable electronic ballast
• DALI dimmable electronic ballast (if possible)
• Finishes: Golden leaf / corten
• Colors:RAL Code
• RA90
• RA90
